SB-UCMIMX93 Carrier Board

  • Optimized for SOM evaluation and software development
  • Implements industry standard interfaces and peripherals
  • Designed as reference for customer’s carrier-boards

Easy Evaluation of UCM-iMX93 Functions

UCM-iMX93 System-on-Module
  • 2x USB, GbE, CAN-FD, RS-485, RS232
  • LVDS and MIPI-DSI LCD panels
  • Supports e-CAM and Raspberry Pi camera modules
  • mini-PCIe with SIM socket for 4G/LTE modules
  • JTAG, M33 debug console, NXP SDP/UUU protocol

Ideal Start for Your Carrier-Board Design

design support
  • Full design package - schematics, BOM, PCB layout
  • Direct engineering support by CompuLab design engineers
  • Proven building blocks for all key interfaces and peripherals
  • Free design review by CompuLab engineers
SW support

Mainline Linux and Yocto Project

  • Full Board Support Package and ready-to-run images
  • Linux kernel, Yocto Project file-system and U-Boot
  • Mainline Linux kernel support

Why choose CompuLab?

10-year Availability

Direct Engineer Support

Mainline Linux and Yocto

In-House Manufacturing

Industrial Temperature

Configure-to-Order

Learn more about CompuLab advantages

  • The "SOM option" column specifies the CL-SOM-iMX8Plus P/N code required for a particular feature.
  • "+" means that the feature is always available, regardless of P/N code.

Feature

Specification

SOM Option

System Core
CPU
RAM
Storage		Please refer to UCM-iMX93 specifications

Display, Camera and Audio
MIPI-DSI
LCD panel		MIPI-DSI interface, up to 1920x1080, 30-pin FPC connector
Capacitive touch-screen interface, 8-pin FPC connector
Compatible with Startec KD050HDFIA020 5" LCD panel
+
LVDS
LCD panel		LVDS interface, up to 1366 x 768 p60, 40-pin FPC connector,
Capacitive touch-screen interface, 8-pin FPC connector,
Compatible with Startec KD070HDTLA020 7" LCD panel
+
CameraMIPI-CSI, 2 data lanes, 30-pin and 22-pin connectors
Compatible with e-CAM series and Raspberry Pi camera modules
+
Digital AudioS/PDIF input/output, 100-mil header
+

Network
Ethernet1000/100/10Mbps Ethernet port, RJ45 connector
E
RGMII1x RGMII, expansion connector
+
WiFiCertified 802.11ac WiFi interface
NXP 88W8997 chipset
WB
BluetoothBluetooth 5.3 BLE
WB
CellularSupport for cellular modem (via mini-PCIe socket)
on-board nano-SIM card socket
+

I/O
USB2x USB 2.0, USB type A connector
+
SD / SDIOSD / SDIO interface, micro-SD socket
+
Serial1x RS232 port, DB9 connector
+
1x RS485 port, terminal block
+
CAN bus1x CAN / CAN-FD interface, terminal block
+
SPIUp-to 2x SPI, 100-mil header
+
I2CUp-to 1x I2C, 100-mil header
+
GPIOUp-to 10x GPIO, 100-mil header
+

System and Debug
Main system
console		Serial debug port via UART-to-USB bridge, micro-USB connector
+
Cortex-M7
debug console		Cortex-M7 serial debug port via RS-232 transceiver, DB9 connector
+
USB
programming		Support for NXP SDP/UUU protocol via micro-USB connector
+
RTCReal time clock operated from on-board coin-cell battery
+
JTAGJTAG debug interface, 100-mil header
+

Electrical Specifications
Supply Voltage
Unregulated 10V to 36V
Digital I/O voltage1.8V / 3.3V

Mechanical Specifications
Dimensions130 x 170 x 25 mm
Weight230 gram

Environmental and Reliability
MTTF> 200,000 hours
Operation temperature (case)Commercial: 0° to 70° C
Extended: -20° to 70° C
Industrial: -40° to 85° C. Click for availability note
Storage temperature-40° to 85° C
Relative humidity10% to 90% (operation)
05% to 95% (storage)
Shock50G / 20 ms
Vibration20G / 0 - 600 Hz
SB-UCMIMX93 block diagram

Hardware Resources

Hardware Documents
    Design Resources

    Software Resources

    Yocto Linux Debian
      Balena OS

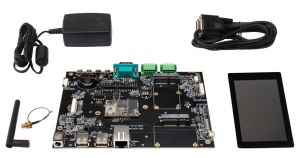

      UCM-iMX93 Evaluation Kit

      from $245

      Hardware

      • UCM-IMX93-C1700D-D2-N32-E-WB-TIC
      • SB-UCMIMX93 carrier board
      • Optional: 7" LVDS LCD with touch panel
      • Optional: Quectel EG25G LTE cellular modem
      • WiFi antennas and cables
      • USB cable
      • 12V power supply

      Technical Support

      • Technical support for 12 months.
      • Schematics review of the customer's carrier board design.
      • LCD panel compatibility verification and driver adaptation service.
      • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.
      EVAL-UCM-iMX93 Product Page

      Ordering Info

      Orderable P/N template: EVAL-UCM-iMX93L-[L7]-[JEG25G]

      FeatureOptionsP/N code
      LCD panelnone
      7″ LVDS LCD panel      		-
      L7
      Cellular modemnone
      LTE CAT4, Quectel EG25G, global bands      		-
      JEG25G

      Documents and Guides

      Product status: Active

      The CompuLab part number specifies all options available for a particular product.

      P/N template: SB-UCMIMX93-[Tx]

      Minimal Configuration

      Minimal configuration P/N: SB-UCMIMX93
      1K-units price
      $95

      Optional Features

      FeatureOptionsP/N codeAdd ($)
      Temperature rangeCommercial
      Extended
      Industrial      		-
      TE
      TI       		-
      10
      50
      Cables, connectors and accessoriesclick here
      • Prices are specified in U.S. Dollars. Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.

      Small Quantity Orders

      Pricing is specified for 1000-unit orders. In order to calculate the price for another quantity, multiply the unit price (with selected options) by the factor listed in the table below:

      QTYFactor
      1K1.0
      5001.1
      1001.25
      101.4
      11.5
