UCM-iMX95 - NXP i.MX 95 System-on-Module

  • High performance graphics and image processing
  • Optimized for industrial applications
  • UCM pin2pin SOM family pin-out and form-factor

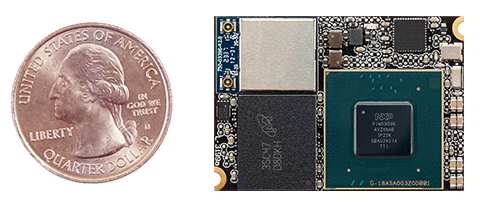

i.MX 95 SoM in Ultra Miniature Form-Factor

i.MX95 processor
  • ARM Cortex-A55 6x CPU cores, 2.0GHz
  • Up to 16GB LPDDR5 and 128GB eMMC
  • ARM Mali GPU, 4K VPU and AI/ML NPU
  • Real-time ARM Cortex-M7 MCU
  • Tiny size and weight - 28 x 40 mm, 10 gram
UCM-iMX95 SOM

Feature Highlights

  • GbE + 10GbE, RGMII, 2x PCIe, USB3.0
  • 2x LVDS, MIPI-DSI, 2x MIPI-CSI
  • Certified 802.11ax WiFi and BT 5.3
  • 5x CAN, 8x UART, 8x SPI, 75x GPIO
  • Wide temperature range of -40C to 85C

View full spec

SW support

Mainline Linux, Yocto Project and RTOS

  • Full Board Support Package and ready-to-run images
  • Linux kernel, Yocto Project file-system, RTOS BSP and U-Boot
  • Mainline Linux kernel support

Get a Head Start on Your Design

SW support
  • Full carrier-board design package - schematics, BOM, PCB layout
  • Direct technical support by CompuLab design engineers
  • Proven building blocks for all key interfaces and peripherals
  • Free design review by CompuLab engineers
  • Driver adaptation service for custom LCD panels

Why choose CompuLab?

15-year Availability

Direct Engineer Support

Linux and Yocto Support

In-House Manufacturing

Industrial Temperature

Configure-to-Order

Learn more about CompuLab advantages.

  • UCM-iMX95 SOM is in pre-production stage. The information provided on this page is subject to change without notice. Please contact us for additional information
  • "Option" column specifies the configuration code required to have the particular feature
  • "+" means that the feature is always available

CPU Core
CPUNXP i.MX95, ARM Cortex-A55 up-to 6x cores, 2.0GHz
C
GPUARM Mali GPU
OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0
+
VPU4K video decode and encode
+
NPUeIQ® Neutron NPU
+
Real-Time
Co-processor		ARM Cortex-M7 + ARM Cortex-M33
+

Memory and Storage
RAM2GB – 16GB, LPDDR5
D
StorageeMMC flash, 16GB - 128GB
N

Display, Camera and Audio
DisplayLVDS, 2x 4-lane or 1x 8-lane , up to 1080p60
+
MIPI-DSI, 4 data lanes, up to 4kp30 or 3840x1440p60
+
TouchscreenCapacitive touch-screen support through SPI and I2C interfaces
+
Camera2x MIPI-CSI, 4 data lanes
+
Digital AudioUp-to 5x I2S / SAI
+
S/PDIF input/output
+

Network
Gbit EthernetGigabit Ethernet port (MAC+PHY)
E
Secondary RGMII
+
10 Gbit Ethernet10 GbE MAC
+
WiFiCertified 802.11ax WiFi
WB
BluetoothBluetooth 5.3 BLE
WB

I/O
PCI Express2x PCIe Gen 3 1x lane
+
USB1x USB3.0 + 1x USB2.0
+
UARTUp to 8x UART
+
CAN busUp-to 5x CAN
+
SD/SDIOUp to 2x SD/SDIO
+
SPIUp to 8x SPI
+
I2CUp to 7x I2C
+
PWMUp to 6x general purpose PWM signals
+
ADCUp-to 8x general-purpose ADC inputs
+
GPIOUp to 75x GPIO (multifunctional signals shared with other functions)
+

System Logic and Debug
RTCReal time clock, powered by external battery
+
JTAGJTAG debug interface
+

Electrical Specifications
Supply Voltage
3.45V to 4.4V
Digital I/O voltage3.3V

Mechanical Specifications
Dimensions28 x 40 x 5 mm
Weight12 gram
Connectors2 x 100 pin, 0.4mm pitch
1x 40 pin, 0.4mm pitch - optional

Environmental and Reliability
MTTF> 200,000 hours
Operation temperature (case)Commercial: 0° to 70° C
Extended: -20° to 70° C
Industrial: -40° to 85° C
Storage temperature-40° to 85° C
Relative humidity10% to 90% (operation)
05% to 95% (storage)
Shock50G / 20 ms
Vibration20G / 0 - 600 Hz
UCM-iMX95 NXP i.MX 95 SOM System-on-Module block diagram

Hardware Resources

Hardware Documents
    Design Resources

      UCM-iMX95 Evaluation Kit

      from: $345

      Hardware

      • UCM-iMX95-C1800HM-D8-N64-E-WB-H
      • SB-UCMIMX95 carrier board
      • Optional: 7" LVDS LCD with touch panel
      • Optional: Quectel EG25G LTE cellular modem
      • Cables and adapters
      • 12V power supply

      Technical Support

      • Technical support for 12 months.
      • Schematics review of the customer's carrier board design.
      • LCD panel compatibility verification and driver adaptation service.
      • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.
      EVAL-UCM-iMX95 Product Page

      Ordering Info

      Orderable P/N template: EVAL-UCM-iMX95-[L7]-[JEG25G]

      FeatureOptionsP/N code
      LCD panelnone
      7″ LVDS LCD panel      		-
      L7
      Cellular modemnone
      LTE CAT4, Quectel EG25G, global bands      		-
      JEG25G

      Documents and Guides

      CompuLab part number specifies all options available for a particular product.

      Ordering P/N template: UCM-iMX95-Cx-Dx-Nx-[E]-[WB]-[H]-[Tx]

      Product Configuration Options

      FeatureOptionsP/N code
      DRAM size2GB
      4GB
      8GB
      16GB      		D2
      D4
      D8
      D16
      eMMC storage
      		16GB
      32GB
      64GB
      128GB      		N16
      N32
      N64
      N128
      EthernetNo
      Yes      		-
      E
      WiFi & BluetoothNo
      Yes      		-
      WB
      Heat dissipation plateNo
      Yes      		-
      H
      Temperature rangeCommercial
      Industrial Certified
      Extended Tested
      Industrial Tested      		-
      TIC
      TET
      TIT
      Software PreloadingNo
      Yes       		-
      X
