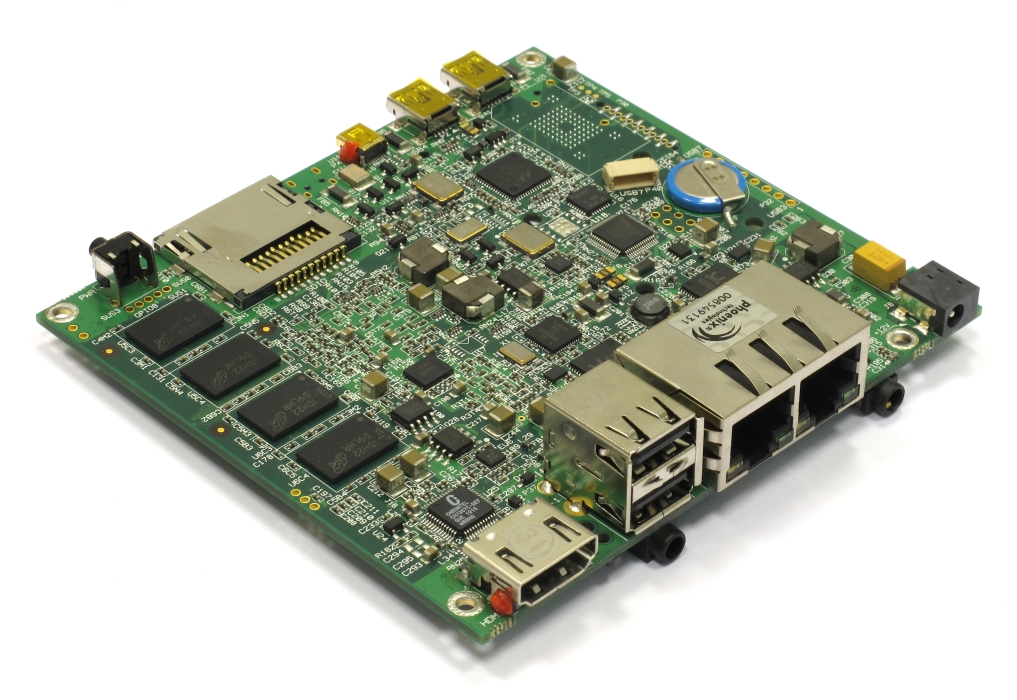

SBC-FITPC2i Single Board Computer

Single board PC in a miniature form factor.
Low power consumption and fan-less operation.
Wide range of high-speed interfaces provides extensive connectivity.

Overview

Product Highlights

Full-featured PC single board computer, tiny and power saving
Intel Atom Z530 CPU @ 1.6 GHz
Intel US15W chipset
Up to 2GB DDR2
Optional 4GB flash disk
DVI & LVDS display interfaces, up to 1920x1080
SATA HDD interface
PXE (Ethernet) and USB boot capability
HD Audio, line-out 2.0 / mic in / line-in
Two 1000 BaseT Ethernet port
802.11b/g/n WiFi
Six USB 2.0 ports
RS-232 serial port
miniSD Socket
IR receiver
Phoenix BIOS
Single 12V supply, 5W, fanless operation
Dimensions - 104 x 96 x 23 mm
Runs Windows XP, Windows 7 and Linux

Description

The SBC-FITPC2i is a tiny single board computer based on Intel's Atom Z530 processor and US15W chipset. It runs all standard operating systems and software packages, including Linux, Windows XP and Windows 7. The SBC-FITPC2i unique advantages include exceptionally small size, quiet, fanless operation and very low power consumption. The rich feature set of the SBC-FITPC2i is customizable according to the price / performance targets of the user's application.

Block Diagram

Specifications

Option" column specifies the configuration code required to have the particular feature.
"+" means that the feature is always available, regardless of P/N code.

CPU, Memory and Busses

Feature	Specifications	Option
CPU	Intel Atom Processor: Z530 - 1.6Ghz @533MHz FSB, or Z510 - 1.1GHz @400MHz FSB. L2-512KB (dynamic sizing), L1- 32KB IC, 24KB DC. Intel Deep Power Down (C6) technology support	C
Chipset	Poulsbo US15 Intel System Controller Hub (INTEL SCH)	+
Memory	1GB or 2GB DDR2, 533/400 MHz, 64-bit	D
Solid State Disk	4GB NAND flash disk (optional)	N
Display interface	SDVO based DVI interface. Hotplug support. Optional 4-ch LVDS interface through FPC (mutually exclusive with SD card socket)	+ L
Audio	Realtek ALC260, High Definition Audio, Line Out, shared line-in / mic-in	A
Ethernet	Two ports, based on Gigabit PCI-Express controller Realtek RTL8111	E
HDD Interface	SATA-II, using Marvell 88SA8052	S
WiFi	802.11 b/g capabilities, using RaLink RT3090 USB module. Up to 54 Mbps, 2.4 GHz band.	W
USB	6 external USB ports: 3 UHCI devices (2 port/device), one EHCI (8 port/device ) support + 1 on the mini PCIE connector (EHCI only) with max. rate up to 480 Mb/s. Four USB connectors, two other ports on internal header.	+
Serial port	Based on IT8761 SIO (will be changed in future to different component) and RS-232 drivers	Y
InfraRed	USB based infra red receiver	I
BIOS	Phoenix SecureCore BIOS	+
SDIO slot	mini SD connector supporting SDIO1.1 and MMC4.1 (mutually exclusive with LVDS option)	L
Extensions	3 GPIO pins, LPC bus, I2C bus

Electrical, Mechanical and Environmental Specifications

Active consumption	5-7W depending on CPU load
Dimensions	104 x 96 x 23 mm
Weight	90 gram
MTBF	> 100,000 hours
Operation temperature	Commercial: 0° to 70° C Extended: -20° to 70° C Industrial: -40° to 85° C
Storage temperature	-40° to 85° C
Relative humidity	10% to 90% (operation) 05% to 95% (storage)

Resources

Hardware Documentation

SBC-FITPC2i Reference GuideAugust 25, 2011
fit-PC2i & SBC-FITPC2i Dimensions and Connectors LocationAugust 25, 2011

Evaluation Kit

SBC-FITPC2i evaluation kit

Package contents:

COMMERCIAL PACKAGE	COMMUNITY PACKAGE
Technical Support
Technical support for 12 months.	Support through users Forum
LCD panel compatibility verification and driver adaptation service.	-
45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.	-
Hardware
SBC-FITPC2i-D2G-C1600-S-E2-A-W
160GB HDD
WiFi & antenna
Power supply and cables

Pricing and Ordering

For pricing and ordering information please contact sales@fit-pc.com.
