• High-performance ARM single board computer
• Advanced video and graphics enable high-end multimedia applications
• Wide range of high-speed interfaces provides extensive connectivity

Overview

Product Highlights

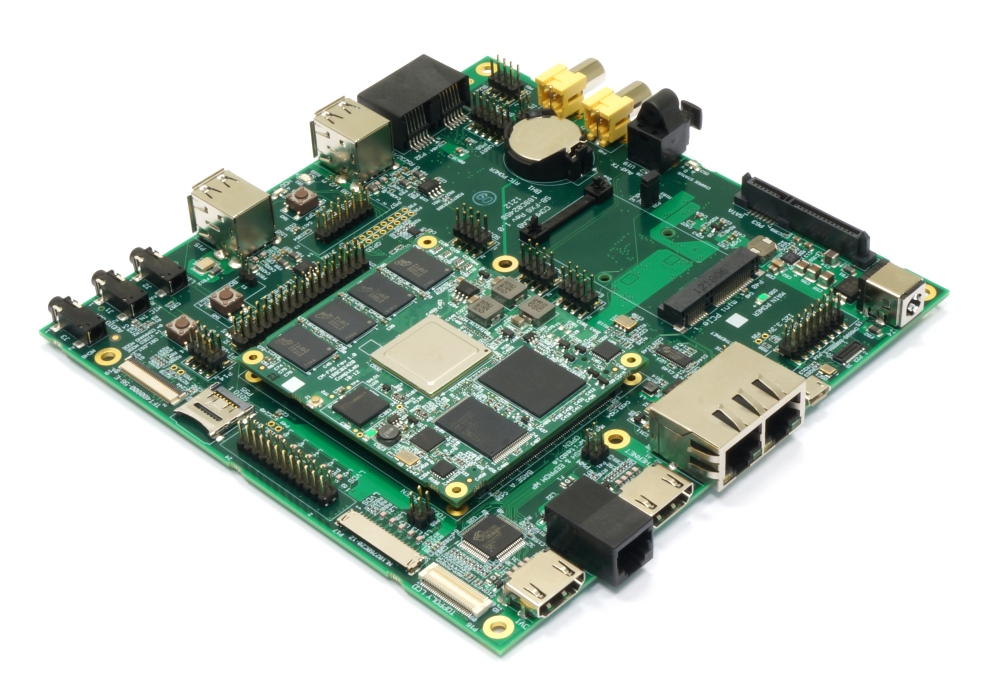

• Single board computer implemented by the combination of a CM-FX6 computer-on-module and SB-FX6 carrier board
• Freescale i.MX6 quad-core Cortex-A9 CPU, up to 1.2GHz
• Up to 4GB DDR3
• 8GB-32GB on-board SSD storage
• Video Processing Unit, 1080p decoding and encoding
• Integrated GPU with OpenGL-ES and OpenCL EP support
• HDMI, DVI, LVDS, parallel RGB
• GbE x2, USB2 x5, SATA, PCIe, RS232, RS485, CAN
• Linux, Android ICS and Windows Embedded Compact 7
• 10V - 17V supply

Description

The SBC-FX6 is a single board computer based on the Freescale i.MX6 CPU. It is implemented with a CM-FX6 computer-on-module providing most of the functions, and a SB-FX6 carrier board providing connectors and several additional functions. The rich feature set of the SBC-FX6 is customizable according to the price / performance needs of the target application.

The SBC-FX6 contains expansion connectors which accommodate a wide range of standard peripheral devices. Wide input range switched power supply is compatible with requirements for telecom and automotive applications.

For feature support status, please refer to O/S Support Coverage Map .

Specifications

• The "SB Option" column specifies the P/N code of SB-FX6 carrier board required to have the particular feature. The "CM Option" column specifies the P/N code of CM-FX6 required to have the particular feature. SBC-FX6 feature-set is the combination of features provided by the attached CM-FX6 and the features implemented on the SB-FX6. To have the particular feature, both the CM and SB options of that feature must be implemented.
• "+" means that the feature is always available, regardless of P/N code.

System and I/O

Feature	Specification	SB Option	CM Option
CPU RAM Graphics Storage	Please refer to CM-FX6 specifications
Display	• HDMI 1.4, stereo-3D support, up to 1920x1200 at 60Hz, HDMI connector • DVI, up to 1920x1080, HDMI connector • 2 LVDS interfaces, up to 165 Mpixels/sec, 100-mil header, FPC compatible with the NL10276BC20-12 LCD panel • Parallel RGB, up to 225 Mpixels/sec, FPC connector	+	+
Gigabit Ethernet	1000 BaseT Ethernet port. Implemented with the CM-FX6 GbE controller. RJ-45 connector, activity LEDs	+	E
	1000 BaseT Ethernet port. Implemented with the on-board Intel i211 GbE controller. RJ-45 connector, activity LEDs * Mutually exclusive with the mini-PCIe socket	EVAL	+
WiFi and Bluetooth	WiFi 802.11b/g/n implemented with Marvell 88W8787 chipset Bluetooth 3.0 + High Speed (HS) (also compliant with Bluetooth 2.1 + EDR) On-board connector for external antenna Implemented with the CM-FX6 on-board wireless module	+	WB
USB	1 OTG USB2.0 high-speed port, 480 Mbps, micro-USB connector 1 host USB2.0 high-speed ports, 480 Mbps, type-A connector	+	U2
	1 OTG USB2.0 high-speed port, 480 Mbps, micro-USB connector 4 host USB2.0 high-speed ports, 480 Mbps, type-A connectors	+	U5
SATA	SATA interface, 7-pin vertical SATA connector	+	CxxxMNDx
Serial Ports	1 RS-232 port, rx/tx only, RS-232 levels, up to 460 Kbps, RJ-11 connector	+	+
	2 RS-232 / RS485 ports, rx/tx only, RJ-11 connectors	Z	+
Sound I/O	Analog audio implemented with the CM-FX6 audio codec Stereo output, line-in, microphone input; 3.5mm jacks	+	A
	S/PDIF input / output, electrical and optical connectors	+	+
PCIe	Mini-PCIe socket * Mutually exclusive with the secondary GbE interface	EVAL	+
CAN	CAN bus interface with isolator and driver, 100-mil header	Y	+
SD	SD socket	+	+
	Micro-SD socket	+	WB
GPIO	Up to 24 GPIOs, 100-mil header	+	+
Video Input	1 parallel camera port (up to 20 bit and up to 240 MHz peak), FPC connector	EVAL	+
	MIPI CSI-2 interface, 100-mil connector	EVAL	+
Battery Management	Charging and supervision support for Lithium-ion polymer batteries	EVAL	+
RTC	Real time clock operated from on-board rechargeable lithium battery.	+	+

Electrical, Mechanical and Environmental Specifications

Feature	Specifications
Supply Voltage	Unregulated 5V to 15V High efficiency switched power supply. Support of sleep mode.
Power Consumption	TBD
Dimensions	160mm x 160mm x 25mm
Operation temp (case)	Commercial:0° to 70° C Extended:-20° to 70° C Industrial:-40° to 85° C. Click for availability note
Storage temperature	-40° to 85° C
Relative humidity	10% to 90% (operation) 05% to 95% (storage)
Shock	50G / 20 ms
Vibration	20G / 0 - 600 Hz
MTBF	> 100,000 hours

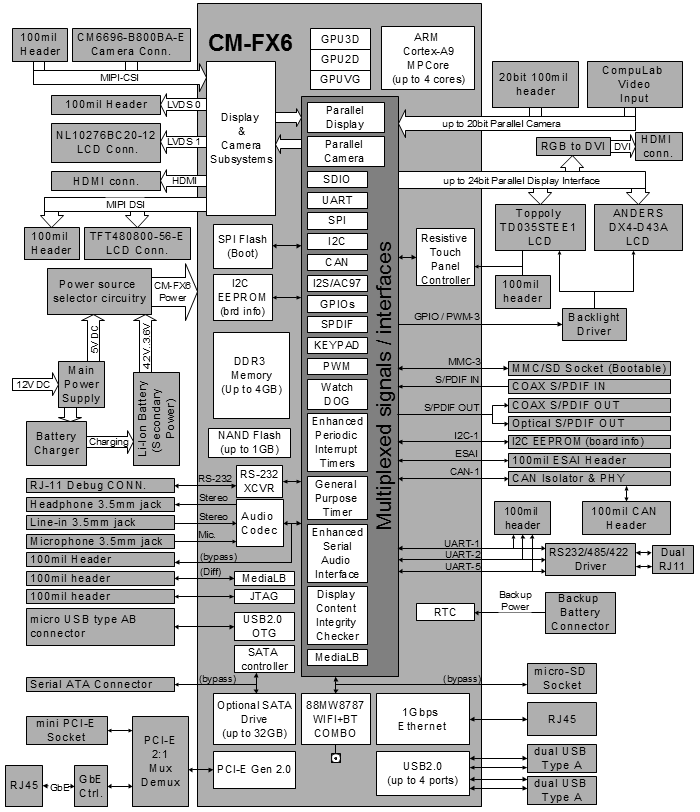

Block Diagram

Resources

Hardware Resources

• CM-FX6 reference guideJuly 31, 2014

• CM-FX6 hardware revision notes

• CM-FX6 mechanical drawingsFebruary 18, 2013
• CM-FX6 3D modelJune 15, 2014
• SB-FX6 design - schematics, dimensions, layoutDecember 13, 2016

Software Resources

• Operating Systems and Drivers for CM-FX6 and SBC-FX6
• CM-FX6 Software documentation

• CM-FX6 Android Ice Cream Sandwich Demo ImageMay 21, 2014
• CM-FX6 Android Jelly Bean Demo Image - SSD InstallerDecember 16, 2014
• CM-FX6 Android Jelly Bean Demo Image (SD card)December 16, 2014

• CM-FX6 Android Documentation

• CM-FX6 Windows Embedded Compact 7.0 BSP (password required)February 11, 2015
• CM-FX6 Windows Embedded Compact 7.0 Demo ImageFebruary 11, 2015

• CM-FX6 Windows Embedded Compact 7 Documentation

• CM-FX6 Linux package (kernel v4.1.15 based)January 11, 2017
• CM-FX6 Linux package (kernel v3.0.35 based)November 12, 2015

• CM-FX6 Linux documentation

• CM-FX6 Yocto Linux documentation

• CM-FX6 U-Boot packageOctober 18, 2015

• CM-FX6 U-Boot documentation

Archive

For previous versions of the CM-FX6 software packages, please refer to the CM-FX6 software archive.

Evaluation Kit

CM-FX6 and SB-FX6 evaluation kit

Hardware

• CM-FX6-D2G-C1200QM-N1G-ND8-E-A-I-U5-W-H
• SB-FX6-Y-Z-EVAL
• LCD panel
• HDMI to DVI video cable
• Serial port cable
• WiFi antenna and cable
• 12V power supply

Technical Support

• Technical support for 12 months.
• Schematics review of the customer's carrier board design.
• LCD panel compatibility verification and driver adaptation service.
• 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

Pricing and Ordering

Product status: Active

The CompuLab part number specifies all options available for a particular product.

Note: The SB-FX6 base-board must contain a CM-FX6 module for the implementation of a self-contained SBC. Options specified on this page refer to the SB-FX6 only.

P/N template: SB-FX6-[Y]-[Z]-[EVAL]

Minimal Configuration

Minimal configuration P/N: SB-FX6
1K-units price	$75

Optional Features

Feature	Options	P/N code	Add ($)
CAN bus	No Yes	- Y	- 9
Additional RS232/RS485	No Yes	- Z	- 14
Evaluation HW	No Yes	- EVAL	- 23
Temperature range	Commercial Extended Industrial	- TE TI	- 10 50
Cables, connectors and accessories	click here

• Prices are specified in U.S. Dollars. Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.

Small Quantity Orders

Pricing is specified for 1000-unit orders. In order to calculate the price for another quantity, multiply the unit price (with selected options) by the factor listed in the table below:

QTY	Factor
10K	0.9
1K	1.0
500	1.2
100	1.5
10	2.0
1	3.0
