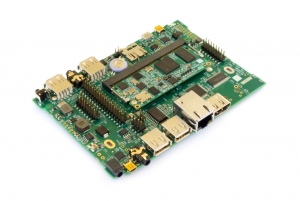

SBC-T335 – TI AM355x Single Board Computer

Ultra low-cost ARM single board computer
Wide range of high-speed interfaces provides extensive connectivity
Miniature form-factor and low power consumption

Overview

Product Highlights

Ultra low cost ARM single board computer in a miniature form factor
Texas Instruments Cortex-A8 Sitara AM3352 / AM3354 SoC, up to 600MHz
Up to 512MB DDR3
Up to 1GB NAND storage
DVI-D, LVDS, LCD at up to 1366 x 768 resolution
PowerVR SGX GPU with OpenGL-ES and OpenVG support
Gigabit Ethernet, USB2.0 x4, RS232 x2, SDIO, CAN
WiFi 802.11b/g/n and Bluetooth 4.0
Analog audio, touch-screen
Linux, Android ICS and Windows Embedded Compact 7
Miniature size: 130 x 93 x 17 mm

Description

The SBC-T335 is a miniature single board computer based on the Texas Instruments Cortex-A8 Sitara AM3354 SoC. The rich feature set of the SBC-T335 is customizable according to the price / performance requirements of the target application.

Specifications

The "SB Option" column specifies the P/N code of SB-T335 carrier board required to have the particular feature. The "CM Option" column specifies the P/N code of CM-T335 required to have the particular feature. SBC-T335 feature-set is the combination of features provided by the attached CM-T335 and the features implemented on the SB-T335. To have the particular feature, both the CM and SB options of that feature must be implemented.
"+" means that the feature is always available, regardless of P/N code.

System and I/O

Feature	Specification	SB Option	CM Option
CPU RAM Graphics Storage	Please refer to CM-T335 specifications
Display	DVI-D, up to 1366x768, HDMI connector	+	+
	LVDS interface, up to 1366x768, 100-mil header	EVK	+
	Parallel RGB, up to 1366x768, FPC connector	+	+
Gigabit Ethernet	1000 BaseT Ethernet port. Implemented with the CM-T335 GbE controller. RJ-45 connector, activity LEDs	+	E
WiFi and Bluetooth	WiFi 802.11b/g/n implemented with TI WL1271 chipset Bluetooth 4.0 + High Speed (HS) (also compliant with Bluetooth 2.1 + EDR) On-board connector for external antenna Implemented with the CM-T335 on-board wireless module	+	WB
USB	1 OTG USB2.0 high-speed port, 480 Mbps, micro-USB connector	+	U4
USB	4 host USB2.0 high-speed ports, 480 Mbps, type-A connector	+	U4
Serial Ports	2 RS-232 ports, rx/tx only, RS-232 levels, up to 460 Kbps, mini-serial connector	+	+
Sound I/O	Analog stereo output, line-in; 3.5mm jacks Implemented with the CM-T335 audio codec	+	A
CAN	CAN bus interface with isolator and driver, 100-mil header	EVK	+
SDIO	Micro-SD socket	+	+
GPIO	Up to 24 GPIOs, 100-mil header	+	+
ADC	Up to 4 general purpose ADC inputs, 100-mil header	+	+
RTC	Real time clock operated from on-board rechargeable lithium battery.	+	+

Electrical, Mechanical and Environmental Specifications

Feature	Specifications
Supply Voltage	Unregulated 10V to 16V. High efficiency switched power supply. Support of sleep mode.
Power Consumption	TBD
Dimensions	130mm x 93mm x 17mm
Operation temp (case)	Commercial:0° to 70° C Extended:-20° to 70° C Industrial:-40° to 85° C. Click for availability note
Storage temperature	-40° to 85° C
Relative humidity	10% to 90% (operation) 05% to 95% (storage)
Shock	50G / 20 ms
Vibration	20G / 0 - 600 Hz
MTBF	> 100,000 hours

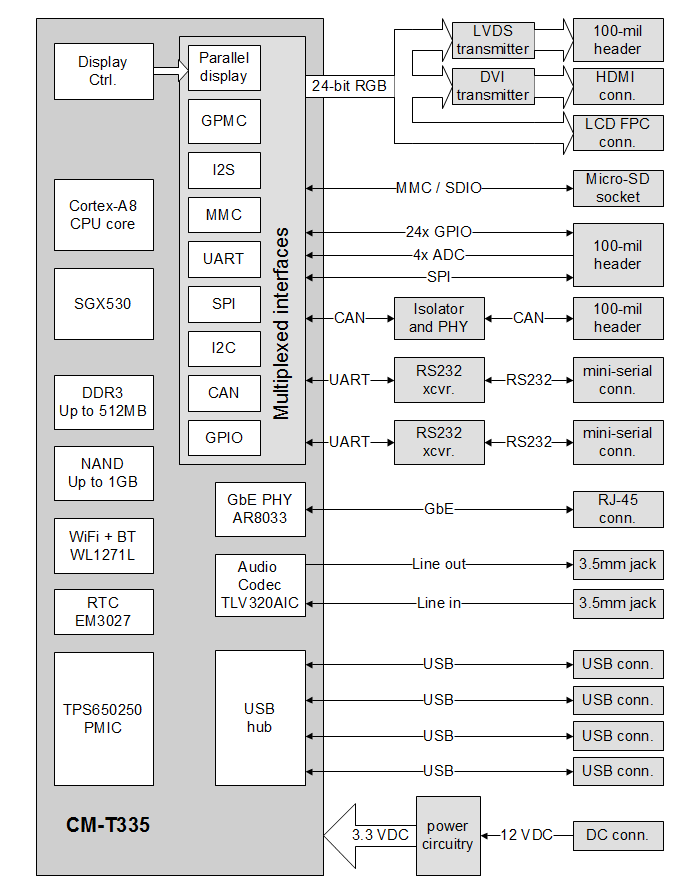

Block Diagram

Resources

Hardware Resources

CM-T335 product briefJuly 8, 2014
CM-T335 reference guideMarch 16, 2016
SB-T335 reference guideSeptember 1, 2014

SB-T335 design - schematics, dimensions, layoutJuly 31, 2013
CM-T335 mechanical drawingsMay 25, 2014
CM-T335 3D modelJune 15, 2014

Software Resources

CM-T335 Linux package (Based on kernel 3.2 - TI SDK)February 23, 2016
CM-T335 Linux package (Based on kernel 4.4)September 14, 2016

CM-T335 Linux documentation

CM-T335 Android packageJuly 30, 2015

CM-T335 Android documentation

CM-T335 Windows Embedded Compact 7.0 demo imageDecember 31, 2014
CM-T335 Windows Embedded Compact 7.0 Board Support Package (password required)December 31, 2014

CM-T335 Windows Embedded Compact 7.0 documentation

CM-T335 U-Boot packageAugust 8, 2022

CM-T335 U-Boot documentation

CM-T335 and SBC-T335 Evaluation Kit

Hardware

CM-T335-D512-C600G-N512-E-A-U4-WB
CM-T335-D256-C300-N512-E-A-U1
SB-T335-EVK
WiFi antenna and cable
Serial port cable
HDMI to DVI cable
USB cable and adapter
LCD panel
Adapters & cables for generic LCD panel interface
12V power supply

Technical Support

Technical support for 12 months.
Schematics review of the customer's carrier board design.
LCD panel compatibility verification and driver adaptation service.
45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

Documents and Guides

Pricing and Ordering

Product status: Active

The CompuLab part number specifies all options available for a particular product.

Note: The SB-T335 base-board must contain a CM-T335 module for the implementation of a self-contained SBC. Options specified on this page refer to the SB-T335 only.

P/N template: SB-T335-[EVAL]

Minimal Configuration

Minimal configuration P/N: SB-T335
1K-units price	$33

Optional Features

Feature	Options	P/N code	Add ($)
Evaluation HW (LVDS and CAN bus)	No Yes	- EVK	- 15
Temperature range	Commercial Extended Industrial	- TE TI	- 10 50
Cables, connectors and accessories	click here

Prices are specified in U.S. Dollars. Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.

Small Quantity Orders

Pricing is specified for 1000-unit orders. In order to calculate the price for another quantity, multiply the unit price (with selected options) by the factor listed in the table below:

QTY	Factor
10K	0.9
1K	1.0
500	1.2
100	1.5
10	2.0
1	3.0
