UCM-iMX8M-Plus Evaluation Kit

starting from $265
  • UCM-iMX8PLUS-C1800QM-D4-N32-E-H SOM
  • SBEV-UCMIMX8PLUS carrier-board
  • Optional 7" LVDS or 5" MIPI-DSI LCD panel
  • Optional Quectel EG25G LTE cellular modem
  • 12V PSU, WiFi antenna and cable
  • Technical support directly from Compulab R&D engineers

Order Now

Optimized for Evaluation and Development

  • 2x Gbit Ethernet, 2x USB, WiFi and Bluetooth
  • LVDS, HDMI, 2x MIPI-CSI and analog audio
  • mini-PCIe with SIM socket for 4G/LTE modules
  • 2x UART, SPI, I2C, CAN-FD, GPIO on 100-mil headers
  • JTAG, M33 debug console, NXP SDP/UUU port

Ideal Start for Your Carrier-Board Design

design support
  • Full design package - schematics, BOM, PCB layout
  • Direct engineering support by Compulab design engineers
  • Proven building blocks for all key interfaces and peripherals
  • Free design review by Compulab engineers
  • Driver adaptation service for custom LCD panels
SW support

Yocto Project, Debian Linux and RTOS

  • Full Board Support Package and ready-to-run images
  • Linux kernel, Yocto Project BSP and U-Boot
  • Support for Docker, MS Azure IoT and Node-RED
  • Support for OTA updates with Mender

Why choose Compulab?

15-years Availability

Direct Engineer Support

Linux and Yocto Support

In-House Manufacturing

Industrial Temperature

Configure-to-Order

Learn more about Compulab advantages

Display, Camera and Audio
MIPI-DSI
LCD panel		MIPI-DSI interface, up to 1920x1080, 100-mil header
Capacitive touch-screen interface, 100-mil header
Compatible with Startec KD050HDFIA020 5" LCD with EB-HDRDSI adapter
LVDS
LCD panel		LVDS interface, up to 1366 x 768 p60, 100-mil header
Capacitive touch-screen interface, 100-mil header
Compatible with Startec KD070HDTLA020 7" LCD with EB-HDRLVDS adapter
DisplayHDMI 2.0a, up-to 1080p60, HDMI connector
Camera2x MIPI-CSI, 4 data lanes, edge connector
Compatible with Basler camera modules with EB-EVCAMBLR adapter
Analog AudioAnalog line output and line input, 3.5mm jacks
WM8962 audio codec
Digital AudioS/PDIF output, 100-mil header

Network
Ethernet2x 1000Mbps Ethernet port, RJ45 connectors
WiFi
and
Bluetooth		802.11ax WiFi and Bluetooth 5.3 BLE
Implemented with Intel WiFi 6E AX210 module
CellularSupport for cellular modem (via mini-PCIe socket)
on-board nano-SIM card socket

I/O
USB2x USB 3.0, USB type A connector
SD / SDIOSD / SDIO interface, micro-SD socket
UART2x UART ports, 100-mil headers
CAN bus1x CAN / CAN-FD interface, 100-mil header
SPI1x SPI, 100-mil header
I2C1x I2C, 100-mil header
GPIOUp-to 16x GPIO, 100-mil header

System and Debug
Main system
console		Serial debug port via UART-to-USB bridge, micro-USB connector
Indicators2x programmable user LEDs
USB
programming		Support for NXP SDP/UUU protocol via micro-USB connector
RTCReal time clock operated from on-board coin-cell battery
JTAGJTAG debug interface, 100-mil header

Electrical Specifications
Supply Voltage
Unregulated 8V to 18V
Digital I/O voltage1.8V / 3.3V

Mechanical Specifications
Dimensions165 x 90 x 20 mm
Weight150 gram

Environmental and Reliability
MTTF> 200,000 hours
Operation temperature (case)Commercial: 0° to 70° C
Extended: -20° to 70° C
Industrial: -40° to 85° C
Storage temperature-40° to 85° C
Relative humidity10% to 90% (operation)
05% to 95% (storage)
Shock50G / 20 ms
Vibration20G / 0 - 600 Hz

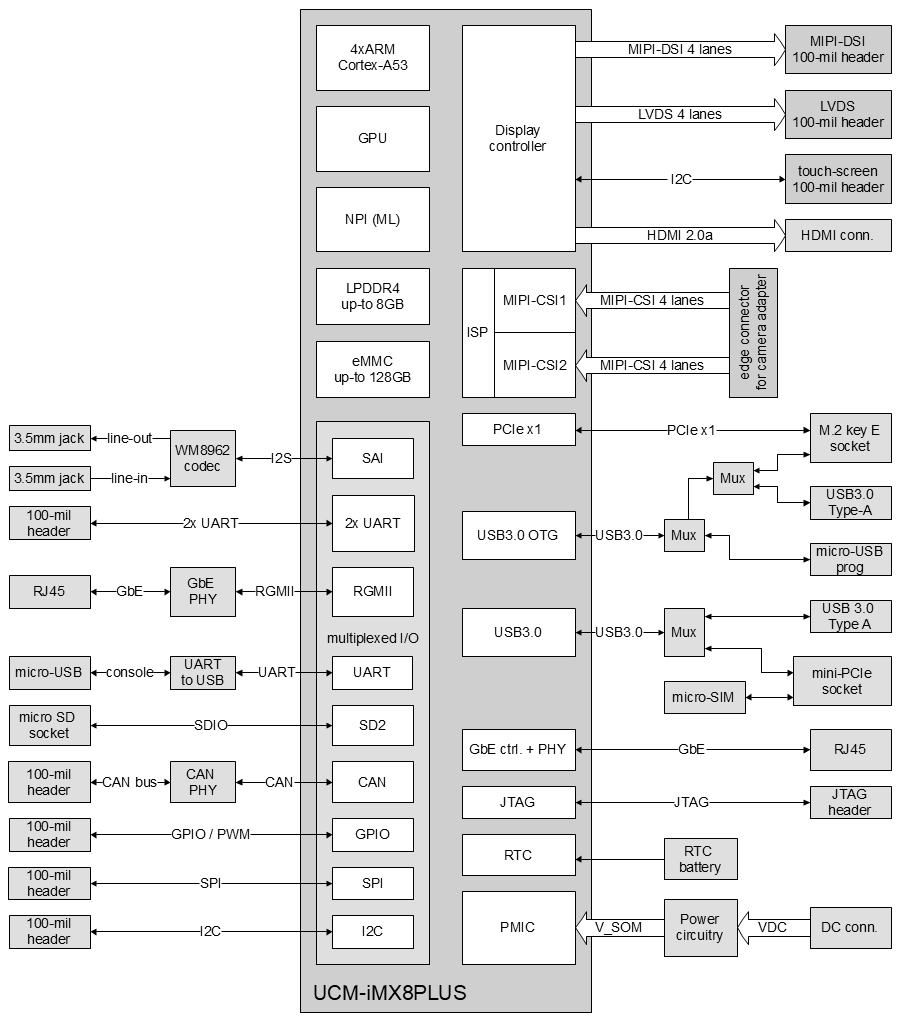

UCM-iMX8M-Plus Evaluation Kit block diagram

Hardware Resources

Hardware Documents
    Design Resources

    Software Resources

    Yocto Linux Debian

      Previous versions

      For previous versions of the UCM-iMX8M-Plus software packages, please refer to the UCM-iMX8M-Plus software archive.

      Item
      Description
      Docs
      EVK LVDS LVD panel
      		7″ LVDS LCD panel
      Startec KD070HDTLA020 7" LCD panel
      Includes capacitive touch-screen
      Supplied with EB-HDRLVDS adapter

      Ordering code: L7

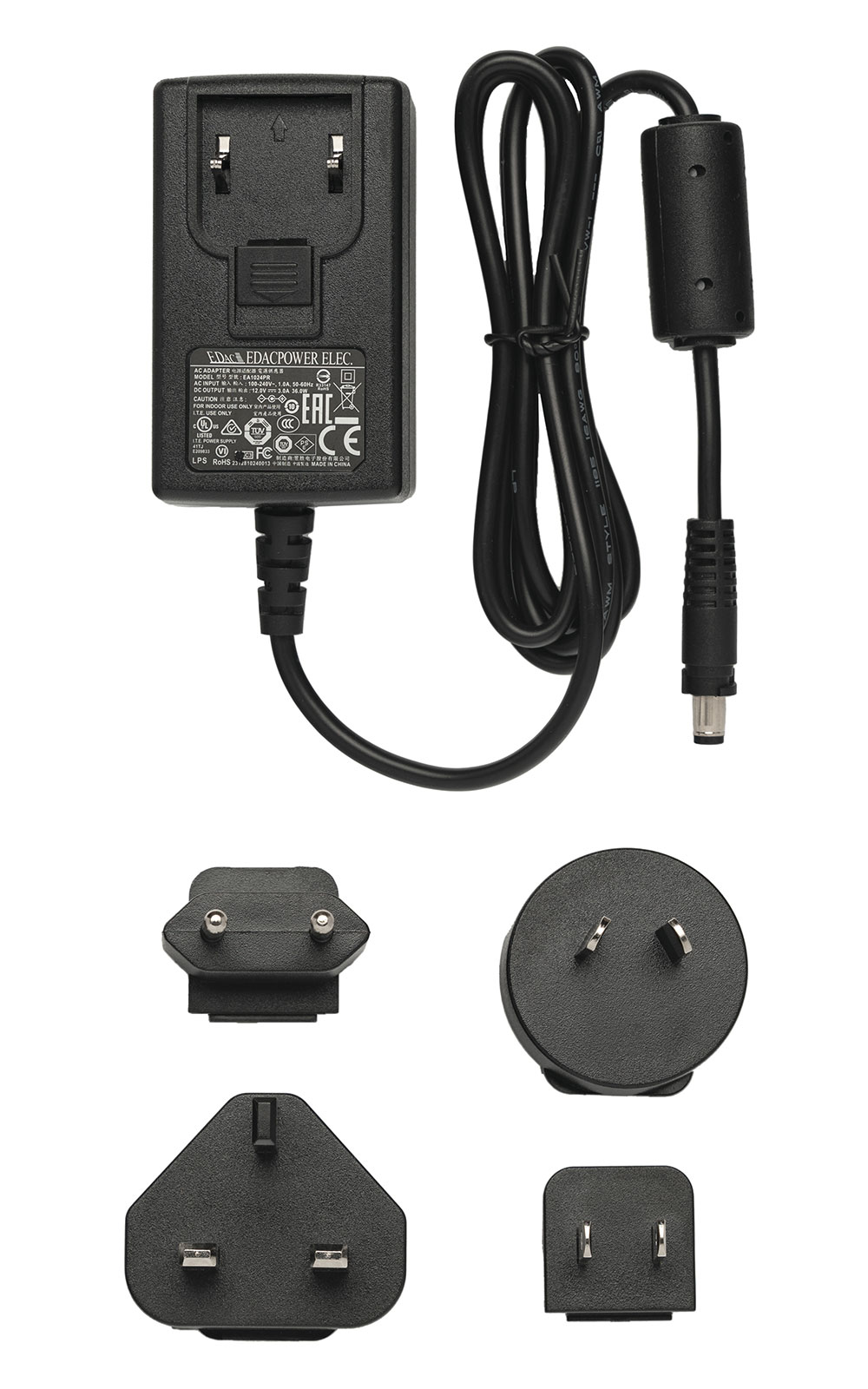

      EVK PSU
      		12V wall-mount PSU
      Input 100-240VAC 50/60Hz, 36W output 12VDC 3A
      Includes US, EU, UK, AU AC blades

      Always included
      datasheet
      EVK cellular modem
      		LTE cellular modem
      Quectel EG25G global modem
      Supplied with rubber duck cellular antenna

      Ordering code: JEG25G

      Product status: Active

      P/N template: EVAL-UCM-iMX8PLUS_V2-[Lx]-[JEG25G]

      FeatureDescriptionP/N codePrice (USD)
      Base KitUCM-iMX8PLUS-C1800QM-D4-N32-E-H SOM
      SBEV-UCMIMX8PLUS carrier-board
      12V power supply
      WiFi antenna and cable      		EVAL-UCM-iMX8PLUS_V2$265
      LCD panelnone
      7″ LVDS LCD panel      		-
      L7      		-
      $90
      Cellular modemnone
      LTE CAT4, Quectel EG25G, global bands      		-
      JEG25G      		-
      $60
